Introduction

In this demonstration, we will utilize techniques of computer vision, including deep convolutional neural networks (CNNs), to train an image classifier model capable of classifying radiographs as either chest or abdominal.

Code

We will utilize the fast.ai v2 library, written primarily by Jeremy Howard and Sylvain Gugger (with help from many others). It is written in the Python programming language and built on top of the PyTorch deep learning library.

The demonstration in this notebook relies heavily on examples from the fast.ai book, Deep Learning for Coders with fastai and PyTorch: AI Applications without a PhD by Jeremy Howard and Sylvain Gugger, which was written entirely in Jupyter notebooks, which are freely available for download on GitHub. A print copy of the book can be purchased from Amazon.

Data

This work is adapted from “Hello World Deep Learning in Medical Imaging {% fn 1 %}”. The chest and abdominal radiographs were obtained from Paras Lakhani’s GitHub repository.

{{ “Reference: Lakhani P, Gray DL, Pett CR, Nagy P, Shih G. Hello World Deep Learning in Medical Imaging. J Digit Imaging. 2018 Jun; 31(3):283-289. Published online 2018 May 3. doi: 10.1007/s10278-018-0779-6” | fndetail: 1 }}

Developers

  • Walter F. Wiggins, MD, PhD - Duke University Hospital, Durham, NC, USA
  • Kirti Magudia, MD, PhD, - University of California, San Francisco, CA, USA
  • M. Travis Caton, MD, PhD - University of California, San Francisco, CA, USA

Acknowledgements

Other versions of this notebook implemented on the Kaggle Notebooks platform were presented at the 2019 Society for Imaging Informatics in Medicine (SIIM) Annual Meeting and for the American College of Radiology (ACR) Residents & Fellows Section (RFS) AI Journal Club.

We would also like to acknowledge the following individuals for inspiring our transition to the Google Colab platform with their excellent notebook from the 2019 RSNA AI Refresher Course: - Luciano M. Prevedello, MD, PhD - Felipe C. Kitamura, MD, MSc - Igor Santos, MD - Ian Pan, MD

System Setup & Downloading the Data

Important: Save a copy of this notebook in your Google Drive folder by selecting Save a Copy in Drive from the File menu in the top left corner of this page. This will allow you to modify the cells and save your results.


Warning: Make sure you have the runtime type set to “GPU”. See GIF below.


Set Runtime to GPU

Setting up the runtime environment…

Running the following cell in Colab will install the necessary libraries, download the data and restart the session.

Warning: This will generate an error message, which we can safely ignore 😉.

::: {.cell _uuid=‘0c1e51dbcbe223c29555c5188b0df55b10ed8b06’ cellView=‘form’}

import os

!pip install fastai==2.1.4 >/dev/null
!pip install fastcore==1.3.1 >/dev/null

# **Downloading the data...**

!wget -q https://github.com/wfwiggins/RSNA-Image-AI-2020/blob/master/data.zip?raw=true
!mkdir -p data
!unzip -o data.zip?raw=true -d data >/dev/null
!rm data.zip?raw=true

os.kill(os.getpid(), 9)

:::

Exploring the Data

Let’s take a look at the directory structure and contents, then create some variables to help us as we proceed.

#collapse
import warnings
warnings.simplefilter('ignore')

import matplotlib.pyplot as plt
plt.rcParams["figure.figsize"] = (12, 12)

::: {.cell _uuid=‘4cfcb87c72a542aefce13f8453097c0d1eb0c7b9’ cellView=‘form’ outputId=‘c18af866-27cb-4f1b-b4a9-7e76ce8456e2’ execution_count=2}

from fastai.basics import *
from fastai.vision.all import *

# Set path variable to the directory where the data is located
path = Path('/content/data')

# Command line "magic" command to show directory contents
!ls {path}/**/*
/content/data/test/abd:

/content/data/test/chest:

/content/data/train/abd:
abd0.png   abd14.png  abd19.png  abd23.png  abd28.png  abd3.png  abd8.png
abd10.png  abd15.png  abd1.png   abd24.png  abd29.png  abd4.png  abd9.png
abd11.png  abd16.png  abd20.png  abd25.png  abd2.png   abd5.png
abd12.png  abd17.png  abd21.png  abd26.png  abd30.png  abd6.png
abd13.png  abd18.png  abd22.png  abd27.png  abd31.png  abd7.png

/content/data/train/chest:
chst33.png  chst39.png  chst45.png  chst51.png  chst57.png  chst63.png
chst34.png  chst40.png  chst46.png  chst52.png  chst58.png  chst64.png
chst35.png  chst41.png  chst47.png  chst53.png  chst59.png  chst65.png
chst36.png  chst42.png  chst48.png  chst54.png  chst60.png
chst37.png  chst43.png  chst49.png  chst55.png  chst61.png
chst38.png  chst44.png  chst50.png  chst56.png  chst62.png

/content/data/val/abd:
abd0.png  abd1.png  abd2.png  abd3.png  abd4.png

/content/data/val/chest:
chst0.png  chst1.png  chst2.png  chst3.png  chst4.png

:::

As you can see, the data directory contains subdirectories train, val and test, which contain the training, validation and test data for our experiment. train and val contain subdirectories abd and chest containing abdominal and chest radiographs for each data set. There are 65 training images and 10 validation images with balanced distributions over our target classes (i.e. approximately equal numbers of abdominal and chest radiographs in each data set and optimized for a classification problem).

Model Training Setup

Before we train the model, we have to get the data in a format such that it can be presented to the model for training.

Data Loaders

The first step is to load the data for the training and validation datasets into a ImageDataLoaders object from the fastai library. When training a model, the ImageDataLoaders will present training - and subsequently, validation - data to the model in batches.

Data Augmentation

In order to be sure that the model isn’t simply “memorizing” the training data, we will augment the data by randomly applying different transformations to each image before it is sent to the model.

Transformations can include rotation, translation, flipping, rescaling, etc.

Load the data into ImageDataLoaders with data augmentation

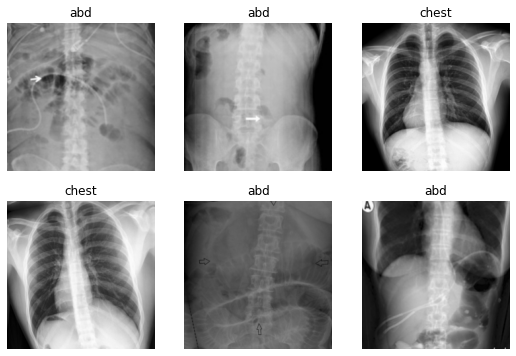

Note: When you run this next cell in Colab, a batch of data will be shown with or without augmentation transforms applied. (1) Run this cell once with the box next to apply_transforms unchecked to see a sample of the original images. (2) Next, run the cell a few more times after checking the box next to apply_transforms to see what happens to the images when the transforms are applied.

::: {.cell _uuid=‘d1c24e4a78f57f12a42de3481db746fe0f170ee3’ cellView=‘form’ outputId=‘ba44aa2d-d8f1-40b2-e9ef-64500483f516’ execution_count=3}

# the following line of code utilizes Colab Forms
apply_transforms = True #@param {type: 'boolean'}

if apply_transforms:
    flip = True
    max_rotate = 10.0
    max_warp = 0.2
    p_affine = 0.75
else:
    flip = False
    max_rotate, max_warp, p_affine = 0, 0, 0

tfms = aug_transforms(
    do_flip=flip,
    max_rotate=max_rotate,
    max_warp=max_warp,
    p_affine=p_affine,
    size=224,
    min_scale=0.75
)
dls = ImageDataLoaders.from_folder(path, valid='val', seed=42, item_tfms=Resize(460), batch_tfms=tfms, bs=16)
dls.show_batch(max_n=6)

:::

Find the optimal learning rate

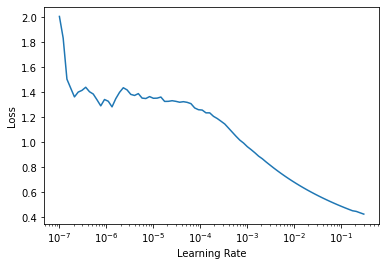

The learning rate is a hyperparameter that controls how much your model adjusts in response to percieved error after each training epoch. Choosing an optimal learning rate is an optimal step in model training.

From the fastai docs: > First introduced by Leslie N. Smith in Cyclical Learning Rates for Training Neural Networks, the LRFinder trains the model with exponentially growing learning rates and stops in case of divergence. > The losses are then plotted against the learning rates with a log scale.

> A good value for the learning rates is then either: > - 1/10th of the minimum before the divergence > - where the slope is the steepest


Note: When you run this cell for the first time in a Colab session, it will download a pretrained version of the model to your workspace before running the LRFinder.

dls = ImageDataLoaders.from_folder(path, valid='val', seed=42, item_tfms=Resize(460), batch_tfms=aug_transforms(size=224, min_scale=0.75), bs=16)
learn = cnn_learner(dls, resnet18, metrics=accuracy)
learn.lr_find();
Downloading: "https://download.pytorch.org/models/resnet18-5c106cde.pth" to /root/.cache/torch/hub/checkpoints/resnet18-5c106cde.pth

Transfer Learning

Deep learning requires large amounts of training data to successfully train a model.

When we don’t have enough data to work with for the planned task, starting with a pre-trained network that has been optimally trained on another task can be helpful. The concept of re-training a pre-trained network for a different task is called transfer learning.

Fine-tuning

In the process of re-training the model, we start by changing the final layers of the network to define the output or predictions our model will make. In order to avoid propagating too much error through the rest of the network during the initial training, we freeze the other layers of the network for the first cycle or epoch of training. Next, we open up the rest of the network for training and train for a few more epochs. This process is called fine-tuning.

Epochs and data augmentation

During each epoch, the model will be exposed to the entire dataset. Each batch of data will have our data transformations randomly applied in order to provide data augmentation. This helps to ensure that our model never sees the exact same image twice. This is important because we wouldn’t want our model to simply memorize the training dataset and not converge on a generalized solution, resulting in poor performance on the validation dataset.

The loss function

In a classification task, you’re either right or wrong. This binary information doesn’t give us much nuance to work with when training a model. A loss function give us a numeric estimation of “how wrong” our model is. This gives us a target to optimize during the training process.

When reviewing the results of successive epochs in training, the loss on your validation dataset should always be decreasing. When it starts to increase, that is a sign of your model overfitting to the training dataset.

Fine-tuning the model

We will fine-tune our model to our task in the following steps: 1. Select the number of epochs for which we will train the model 2. Choose a base learning rate based on the results from the LRFinder plot above 3. Run the cell to initiate model training utilizing the fine_tune() method from fastai

Tip: If you’re running this notebook in Colab, you can re-run this cell with different hyperparameters to better understand how they affect the result.

# the following lines of code utilize Colab Forms
epochs = 5 #@param {type: "integer"}
base_lr = 2e-3 #@param {type: "number"}

learn = cnn_learner(dls, resnet18, metrics=accuracy)
learn.fine_tune(epochs, base_lr=base_lr)
epoch train_loss valid_loss accuracy time
0 1.106555 1.336308 0.500000 00:01
epoch train_loss valid_loss accuracy time
0 0.124234 0.632943 0.700000 00:01
1 0.175012 0.107626 0.900000 00:01
2 0.129196 0.022088 1.000000 00:01
3 0.100126 0.012920 1.000000 00:01
4 0.078639 0.012502 1.000000 00:01

Review training curves

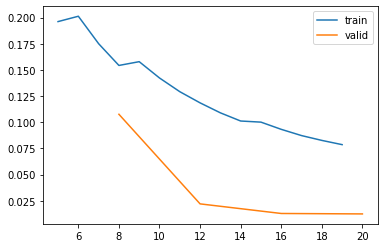

The visual representation of the training and validation losses are useful to evaluate how successfully you were able to train your model. You should see the validation loss continuously decreasing over subsequent batches.

Important: If the validation loss begins to increase, your model may be starting to overfit. Consider restarting your training experiment with one fewer epochs than it took to overfit.

learn.recorder.plot_loss()

Testing the Model

Test the model on the test dataset

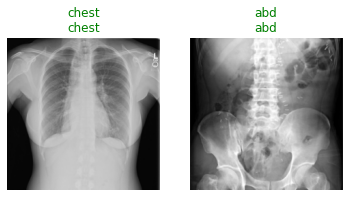

When you run the following cell, the first line shows the groundtruth for whether the radiograph is of the chest or abdomen. The second line is the model prediction for whether the image is a chest or abdominal radiograph.

test_files = get_image_files(path/'test')
test_dl = learn.dls.test_dl(test_files, with_labels=True)
learn.show_results(dl=test_dl)

A little more detail on the predictions

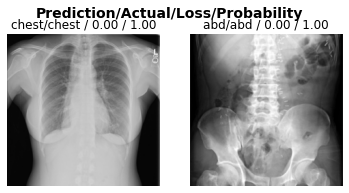

Running this cell will provide us with the loss on each image, as well as the model’s predicted probability, which can be thought of as the model’s confidence in its prediction.

Note: If the model is correct and completely confident, the loss should be near “0.00” and the probability will be “1.00”, respectively.

interp = ClassificationInterpretation.from_learner(learn, dl=test_dl)
interp.plot_top_losses(k=2)

Test the model on a surprise example

Here, we present the model with an unexpected image (an elbow radiograph) and see how it responds.

y = get_image_files(path, recurse=False)
test_dl = learn.dls.test_dl(y)
x, = first(test_dl)
res = learn.get_preds(dl=test_dl, with_decoded=True)
x_dec = TensorImage(dls.train.decode((x,))[0][0])
fig, ax = plt.subplots()
fig.suptitle('Prediction / Probability', fontsize=14, fontweight='bold')
x_dec.show(ctx=ax)
ax.set_title(f'{dls.vocab[res[2][0]]} / {max(res[0][0]):.2f}');

When presented with this radiograph of an elbow, the model makes a prediction but is less confident than with the other test images.

Important: (1) A deep learning classification model can only learn what we teach it to learn.

Important: (2) In designing our model implementation, we might consider designing a pre-processing step in which the data (or metadata) is checked to ensure the input to the model is valid.

Visualizing Model Inferences

Class activation map (CAM)

CAM allows one to visualize which regions of the original image are heavily weighted in the prediction of the corresponding class. This technique provides a visualization of the activations in the final convolutional block of a Convolutional Neural Network (CNN).

CAM can also be useful to determine if the model is “cheating” and looking somewhere it shouldn’t be to make its prediction (i.e. radioopaque markers placed by the technologist).

Note: If you are running this cell in Colab, choose which of the two test images you would like to examine and run this cell to see the CAM output overlayed on the input image.

test_case = 'chest' #@param ['abd', 'chest']
cls = 0 if test_case == 'abd' else 1
label = test_case

y = get_image_files(path/'test'/label)
test_dl = learn.dls.test_dl(y, with_labels=True)

hook = hook_output(learn.model[0])
x, _ = first(test_dl)
with torch.no_grad(): output = learn.model.eval()(x)
act = hook.stored[0]
cam_map = torch.einsum('ck,kij->cij', learn.model[1][-1].weight, act)
x_dec = TensorImage(dls.train.decode((x,))[0][0])
_, ax = plt.subplots()
x_dec.show(ctx=ax)
ax.imshow(cam_map[cls].detach().cpu(), alpha=0.6, extent=(0,224,224,0),
              interpolation='bilinear', cmap='magma');
hook.remove()

Grad-CAM

Gradient-weighted CAM (Grad-CAM) allows us to visualize the output from any convolutional block in a CNN.

By default, this cell is setup to show the Grad-CAM output from the final convolutional block in the CNN, for comparison to the CAM output.

Note: If you’re running this notebook in Colab, (1) choose which of the two test images you would like to examine and run this cell to see the Grad-CAM output overlayed on the input image, then (2) select a different block and re-run the cell to see how the output changes for different blocks in the network.

test_case = 'abd' #@param ['abd', 'chest']

cls = 0 if test_case == 'abd' else 1
label = test_case

y = get_image_files(path/'test'/label)
test_dl = learn.dls.test_dl(y, with_labels=True)
x, _ = first(test_dl)
mod = learn.model[0]

block = -2 #@param {type: "slider", min: -8, max: -1, step: 1}

hook_func = lambda m,i,o: o[0].detach().clone()

with Hook(mod[block], hook_func, is_forward=False) as hookg:
    with Hook(mod[block], hook_func) as hook:
        output = learn.model.eval()(x.cuda())
        act = hook.stored
    output[0, cls].backward()
    grad = hookg.stored

w = grad[0].mean(dim=[1,2], keepdim=True)
cam_map = (w * act[0]).sum(0)
x_dec = TensorImage(dls.train.decode((x,))[0][0])
_, ax = plt.subplots()
x_dec.show(ctx=ax)
ax.imshow(cam_map.detach().cpu(), alpha=0.6, extent=(0,224,224,0),
              interpolation='bilinear', cmap='magma');
